產品詳情
點擊圖片查看原圖產品價格 面議
最小起訂量：50 只 可售數量：500 只

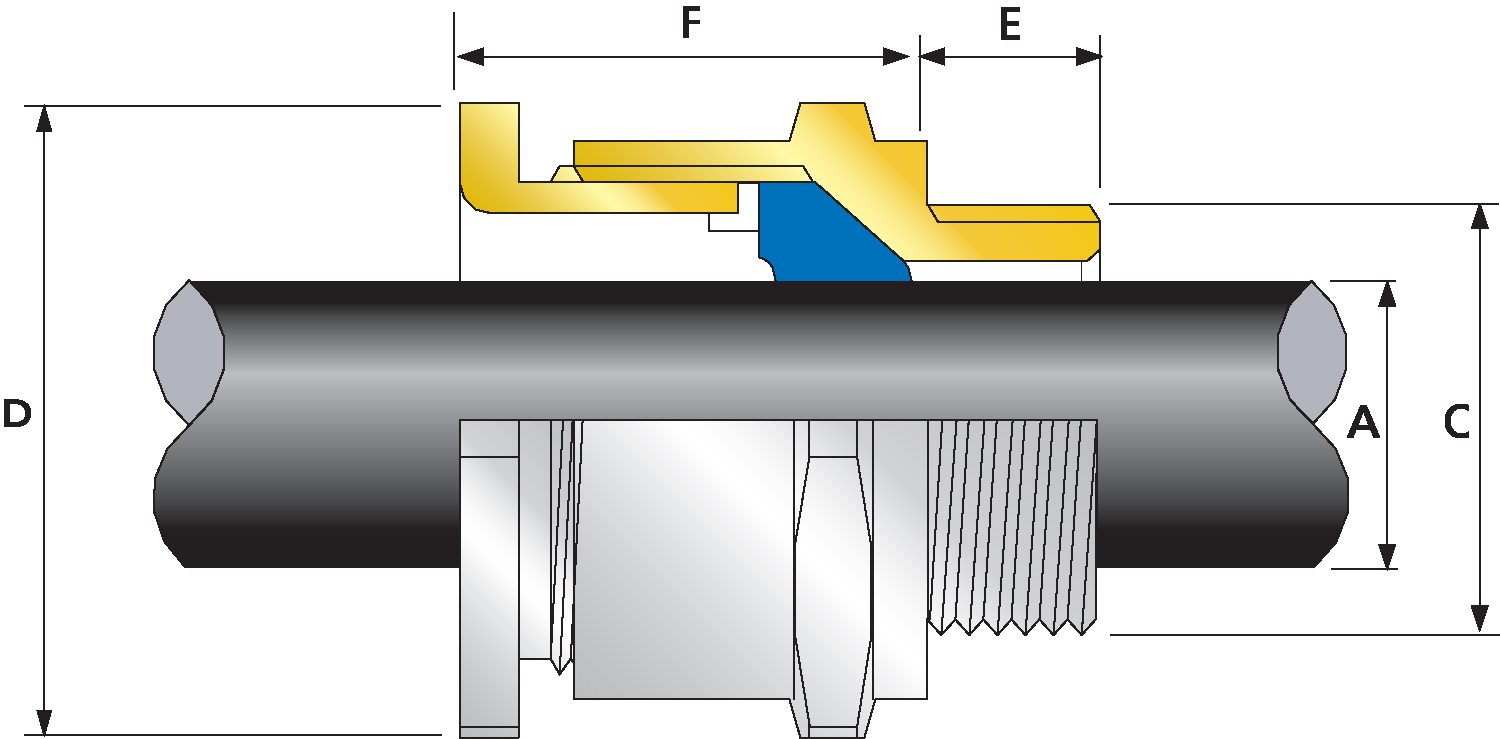

| Cable Gland Size | Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) | Overall Cable Diameter 'A' |
Across Flats 'D' |
Across Corners 'D' |
Protrusion Length 'F' |
Combined Ordering Reference (*Brass Metric) |
Shroud | Cable Gland Weight (kgs) |
|||||||
| Standard | Option | ||||||||||||||
| Metric | Thread Length (Metric) 'E' | NPT | Thread Length (NPT) 'E' |
NPT | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 16 | M16 | 15.0 | - | - | - | 3.2 | 8.7 | 24.0 | 26.4 | 29.9 | 16 | A2F | 1RA | PVC04 | 0.06 |
| 20S16 | M20 | 15.0 | ½" | 19.9 | ¾" | 3.2 | 8.7 | 24.0 | 26.4 | 26.0 | 20S16 | A2F | 1RA | PVC04 | 0.07 |
| 20S | M20 | 15.0 | ½" | 19.9 | ¾" | 6.1 | 11.7 | 24.0 | 26.4 | 26.0 | 20S | A2F | 1RA | PVC04 | 0.06 |
| 20 | M20 | 15.0 | ½" | 19.9 | ¾" | 6.5 | 14.0 | 27.0 | 29.7 | 27.7 | 20 | A2F | 1RA | PVC05 | 0.07 |
| 25 | M25 | 15.0 | ¾" | 20.2 | 1" | 11.1 | 20.0 | 36.0 | 39.6 | 35.5 | 25 | A2F | 1RA | PVC09 | 0.13 |
| 32 | M32 | 15.0 | 1" | 25.0 | 1 ¼" | 17.0 | 26.3 | 41.0 | 45.1 | 35.1 | 32 | A2F | 1RA | PVC10 | 0.15 |
| 40 | M40 | 15.0 | 1 ¼" | 25.6 | 1 ½" | 23.5 | 32.2 | 50.0 | 55.0 | 35.1 | 40 | A2F | 1RA | PVC13 | 0.20 |
| 50S | M50 | 15.0 | 1 ½" | 26.1 | 2" | 31.0 | 38.2 | 55.0 | 60.5 | 33.0 | 50S | A2F | 1RA | PVC15 | 0.26 |
| 50 | M50 | 15.0 | 2" | 26.9 | 2 ½" | 35.6 | 44.0 | 60.0 | 66.0 | 37.3 | 50 | A2F | 1RA | PVC18 | 0.27 |
| 63S | M63 | 15.0 | 2" | 26.9 | 2 ½" | 41.5 | 49.9 | 70.5 | 77.6 | 33.5 | 63S | A2F | 1RA | PVC21 | 0.43 |
| 63 | M63 | 15.0 | 2 ½" | 39.9 | 3" | 47.2 | 55.9 | 75.0 | 82.5 | 36.2 | 63 | A2F | 1RA | PVC23 | 0.40 |
| 75S | M75 | 15.0 | 2 ½" | 39.9 | 3" | 54.0 | 61.9 | 84.0 | 92.4 | 34.1 | 75S | A2F | 1RA | PVC24 | 0.52 |
| 75 | M75 | 15.0 | 3" | 41.5 | 3 ½" | 61.1 | 67.9 | 84.0 | 92.4 | 40.9 | 75 | A2F | 1RA | PVC24 | 0.50 |
| 90 | M90 | 24.0 | 3 ½" | 42.8 | 4" | 66.6 | 79.9 | 108.0 | 118.8 | 60.3 | 90 | A2F | 1RA | PVC31 | 1.60 |
| 100 | M100 | 24.0 | 3 ½" | 42.8 | 4" | 76.0 | 91.0 | 123.0 | 135.3 | 57.2 | 100 | A2F | 1RA | - | 1.78 |
| 115 | M115 | 24.0 | 4" | 44.0 | 5" | 86.0 | 97.9 | 133.4 | 146.7 | 67.3 | 115 | A2F | 1RA | - | 2.67 |
| 130 | M130 | 24.0 | 5" | 46.8 | - | 97.0 | 114.9 | 152.4 | 167.6 | 74.7 | 130 | A2F | 1RA | - | 3.80 |
| Dimensions are displayed in millimetres unless otherwise stated | |||||||||||||||
