產品詳情
點擊圖片查看原圖產品價格 面議
最小起訂量：20 只 可售數量：500 只

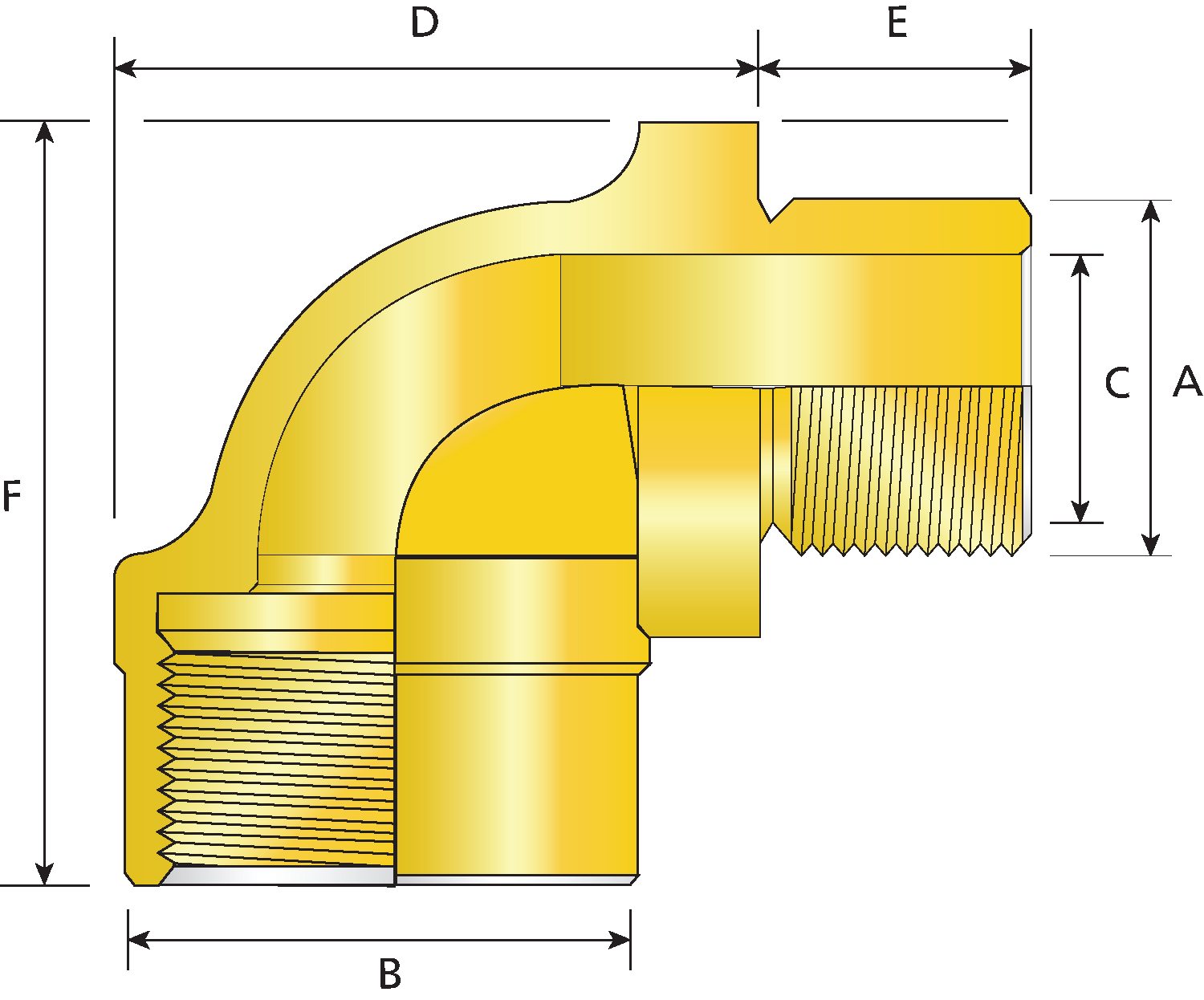

| Ordering Reference |
Male Thread Size 'A' |
Minimum Thread Length 'E' |
Bore Diameter 'C' |
Female Thread Size |
Protrusion Length 'D' |
Protrusion Length 'F' |
Width 'B' |
Width 'B' |
| 787DM2M2 | M20 X 1.5 | 15.3 | 14.0 | M20 X 1.5 | 29.6 | 41.0 | 24.0 | 7 |
| 787DM3M3 | M25 X 1.5 | 15.3 | 18.6 | M25 X 1.5 | 36.3 | 49.3 | 29.0 | 10 |
| 787DM4M4 | M32 X 1.5 | 15.3 | 25.6 | M32 X 1.5 | 45.2 | 56.3 | 36.0 | 15 |
| 787DM5M5 | M40 X 1.5 | 15.3 | 33.6 | M40 X 1.5 | 54.2 | 64.8 | 44.0 | 25 |
| 787DM6M6 | M50 X 1.5 | 15.3 | 41.0 | M50 X 1.5 | 68.3 | 74.0 | 54.0 | 30 |
| 787DM7M7 | M63 X 1.5 | 15.3 | 50.0 | M63 X 1.5 | 97.0 | 104.3 | 75.3 | 45 |
| 787DM8M8 | M75 X 1.5 | 15.3 | 61.3 | M75 X 1.5 | 97.0 | 111.3 | 79.5 | 45 |
| 787DM9M9 | M90 X 2.0 | 15.3 | 80.0 | M90 X 2.0 | 100.0 | 131.3 | 110.0 | 45 |
| 787DM10M10 | M100 X 2.0 | 15.3 | 91.0 | M100 X 2.0 | 110.0 | 141.3 | 115.0 | 45 |
| Dimensions displayed in millimeters unless otherwise stated | ||||||||
