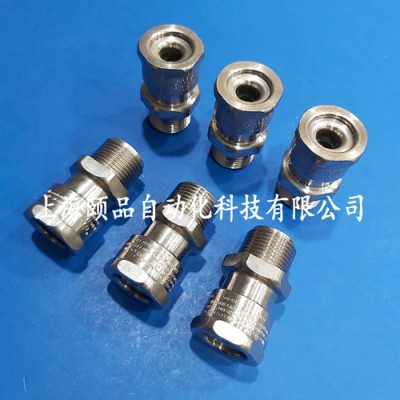

Peppers扁電纜非鎧防爆格蘭密封接頭（A8系列）
Peppers扁電纜非鎧防爆格蘭密封接頭（A8系列）
Peppers防爆格蘭代理商：上海頤品自動化科技有限公司
Single Compression Gland Designed for Armoured and
Type A8 series for Unarmoured Flat Cable
Ex db : Ex eb : Ex nR : Ex ta : IP66 : IP68 : Class I Div 2 : AEx e : AEx ta
關鍵詞：Peppers防爆格蘭，Peppers防爆密封接頭，Peppers防爆填料函
Peppers鎧裝防爆格蘭，Peppers鎧裝防爆密封接頭，Peppers防爆填料函
Peppers防爆堵頭，Peppers防爆變徑接頭，Peppers防爆呼吸閥格蘭堵頭
Peppers防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司
Peppers cable gland Product Type A8
IP Rating: IP66 & IP68 (50 metres-7 Days), Type 4X & DTS01:1991
Operating Temp: Neoprene Seals -35°C to +90°C；Silicone Seals -60°C to +180°C
Materials: Brass or Stainless Steel
Plating: Electroless Nickel
Certificates: ABS, ATEX, CCC, CCoE, CEC, EAC, IECEx, INMETRO, KCS, LLOYDS,NEC
EXAMPLE PART NUMBERING: A8BF/NP/20R/M20
Product Description：
A8 type glands are certified Flameproof Ex db, Increased Safety Ex eb, Restricted Breathing Ex nR and Dust Protected Ex ta.
They are suitable for use in Zone 1 and 2 for Gas Groups IIA, IIB and IIC and additionally for use in Zones 20, 21 and 22 for
Dust Groups IIIA, IIIB and IIIC. Developed for flat cables, they provide controlled Ex db sealing and have been tested to IP66
and IP68 to 50 metres. The A8 version is designed to accommodate unarmoured and armoured cables where sealing and
retention is required only on the outer sheath.
COMPLIANCE STANDARDS:
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31 & IEC 60529
UL514B, UL1203, ANSI/UL 60079-0/7, ISA 60079-31
CABLE GLAND SELECTION TABLE
(ALL DIMENSIONS IN mm)
20S M20x1.5，NPT3/4”or 1/2, Flat Width：6.3-11.7mm，Thickness：4.0-7.0mm
20S M25x1.5，NPT3/4”or 1/2，F(xiàn)lat Width：6.3-11.7mm，Thickness：4.0-7.0mm
20R M20x1.5，NPT3/4”or 1/2, Flat Width：8.1-13.5mm，Thickness：5.8-6.2mm
20R M25x1.5，NPT3/4”or 1/2，F(xiàn)lat Width：8.1-13.5mm，Thickness：5.8-6.2mm
20 M20x1.5，NPT3/4”or 1/2, Flat Width：10.3-13.5mm，Thickness：5.6-9.0mm
20 M25x1.5，NPT3/4”or 1/2，F(xiàn)lat Width：10.3-13.5mm，Thickness：5.6-9.0mm
25 M25x1.5，NPT3/4”or 1/2，F(xiàn)lat Width：10.6-16.2mm，Thickness：4.0-7.0mm
** Size 25mm is only currently ATEX, IECEx, INMETRO, EAC and Ukraine certified.
• Gland size does not necessarily equate to the entry thread size.
• Dimensions (A) & (B) may differ for glands with non metric entry threads.
Please refer to our “Thread Reference Tables” for specific dimensions.
• Assembly instructions must be read prior to installation and adhered to in full.
• Peppers supply products with parallel entry threads that conform to the flameproof threaded joint requirements of IEC/EN 60079-1
and other equivalent standards. They usually incorporate a thread run out according to the available machining techniques and will
not have a full form thread for the entire length
Peppers Cable Glands Limited will not be held responsible for clients’
installations where this has not been taken into account.
• When selecting IP Washer material for gland kits, please be aware of the accessories temperature range to ensure they are suitable for the intended installation.
• Where approval in addition to ATEX, IECEx and CSA is required, this must be clearly requested at time of enquiry / order.
Peppers防爆格蘭主要特點：
1、多用途解決方案（Peppers cable gland）
新的創新壓蓋樣式，如A*RCC、A*RCM、A*RCF和LT-C，在導管安裝中提供了更多的通用性。CR-S*M不同于市場上的任何其他壓蓋，被稱為“導管塞盒”，
可以有效阻止任何方向的爆炸。Peppers還將其獨創的CROCLOCK®單向夾緊系統和雨淋保護概念集成到各種壓蓋設計中，確保完成更多安裝時不會出錯。
2、減少安裝時間和成本（Peppers cable gland）
Peppers的阻隔壓蓋采用Peppers T-1000化合物，僅需 小時即可將導體端接在設備內。四小時后，可以檢查復合室，并給設備通電。我們創新的屏蔽室提
供的電纜驗收比我們競爭對手的設計平均大17%，允許使用更小的密封套，從而顯著降低成本。
3、壓蓋和外殼配件（Peppers cable gland）
Peppers提供全套經批準的危險區域連接解決方案，以補充其廣泛的腺體。流行的外殼配件包括適配器和變徑接頭、堵頭、通氣呼吸閥、直角螺紋適配器等，
所有這些配件都有多種螺紋轉換選項，例如公制、NPT和PG等。專用于Peppers壓蓋的壓蓋配件包括鎖緊螺母、密封墊圈、鋸齒墊圈、接地標簽和護罩。無
論您安裝需要什么，我們都會為您提供服務。
