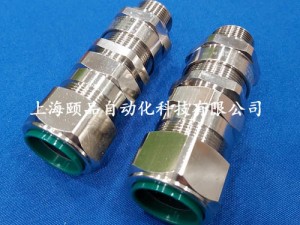

CMP鎧裝防爆格蘭密封接頭（E1FW系列）
英國CMP鎧裝防爆格蘭E1FW系列（CMP E1FW cable gland）
CMP防爆格蘭代理商: 上海頤品自動化科技有限公司
E1FW | Ex eb, Ex db, Ex nR, Ex ta, Explosive Atmosphere Cable Gland
For all types of Steel & Aluminium Wire Armoured Cables
Globally Approved, Explosive Atmosphere Cable Gland
• metal-to-metal armour clamping
• Direct & remote installation
• Displacement type flameproof inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent coldflow, see CMP Technical document TS001 (available upon request)
• -60°C to +130°C
• Class I Zone 1, 21 ａnd Zone 2, 22 Class I Division 2 ABCD
• Globally marked, IECEx, ATEX & cCSAus
• EMC tested
If you require further information, please contact EPIN AUTOMATION
PRODUCT SELECTION TABLE
（選型表格）
| Cable Gland Size | Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter ＇A＇ | Overall Cable Diameter ＇B＇ |
Armour Range | Across Flats ＇D＇ |
Across Corners ＇D＇ |
Protrusion Length ＇F＇ |
Combined Ordering Reference (*Brass Metric) |
Shroud | Cable Gland Weight (Kgs) |
|||||||||
| Standard | Option | ||||||||||||||||||
| Metric | Thread Length (Metric) ＇E＇ | NPT | Thread Length (NPT) ＇E＇ |
NPT | Min | Max | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20S16 | M20 | 15.0 | ½＇ | 19.9 | ¾" | 3.1 | 8.6 | 6.1 | 13.1 | 0.8 | 1.25 | 24.0 | 26.4 | 72.5 | 20S16 | E1FW | 1RA | PVC04 | 0.16 |
| 20S | M20 | 15.0 | ½＇ | 19.9 | ¾" | 6.1 | 11.6 | 9.5 | 15.9 | 0.8 | 1.25 | 24.0 | 26.4 | 70.0 | 20S | E1FW | 1RA | PVC04 | 0.15 |
| 20 | M20 | 15.0 | ½＇ | 19.9 | ¾" | 6.5 | 13.9 | 12.5 | 20.9 | 0.8 | 1.25 | 30.5 | 33.6 | 73.0 | 20 | E1FW | 1RA | PVC06 | 0.21 |
| 25S | M25 | 15.0 | ¾＇ | 20.2 | 1" | 11.1 | 19.9 | 14.0 | 22.0 | 1.25 | 1.6 | 37.5 | 41.3 | 89.0 | 25S | E1FW | 1RA | PVC09 | 0.33 |
| 25 | M25 | 15.0 | ¾＇ | 20.2 | 1" | 11.1 | 19.9 | 18.2 | 26.2 | 1.25 | 1.6 | 37.5 | 41.3 | 89.0 | 25 | E1FW | 1RA | PVC09 | 0.33 |
| 32 | M32 | 15.0 | 1＇ | 25.0 | 1 ¼" | 17.0 | 26.2 | 23.7 | 33.9 | 1.6 | 2.0 | 46.0 | 50.6 | 86.0 | 32 | E1FW | 1RA | PVC11 | 0.43 |
| 40 | M40 | 15.0 | 1 ¼＇ | 25.6 | 1 ½" | 22.0 | 32.1 | 27.9 | 40.4 | 1.6 | 2.0 | 55.0 | 60.5 | 90.0 | 40 | E1FW | 1RA | PVC15 | 0.62 |
| 50S | M50 | 15.0 | 1 ½＇ | 26.1 | 2" | 29.5 | 38.1 | 35.2 | 46.7 | 2.0 | 2.5 | 60.0 | 66.0 | 91.0 | 50S | E1FW | 1RA | PVC18 | 0.75 |
| 50 | M50 | 15.0 | 2＇ | 26.9 | 2 ½" | 35.6 | 44.0 | 40.4 | 53.0 | 2.0 | 2.5 | 70.1 | 77.1 | 95.0 | 50 | E1FW | 1RA | PVC21 | 0.95 |
| 63S | M63 | 15.0 | 2＇ | 26.9 | 2 ½" | 40.1 | 49.9 | 45.6 | 59.4 | 2.0 | 2.5 | 75.0 | 82.5 | 102.0 | 63S | E1FW | 1RA | PVC23 | 1.34 |
| 63 | M63 | 15.0 | 2 ½＇ | 39.9 | 3" | 47.2 | 55.9 | 54.6 | 65.8 | 2.0 | 2.5 | 80.0 | 88.0 | 104.0 | 63 | E1FW | 1RA | PVC25 | 1.34 |
| 75S | M75 | 15.0 | 2 ½＇ | 39.9 | 3" | 52.8 | 61.9 | 59.0 | 72.0 | 2.0 | 2.5 | 90.0 | 99.0 | 115.0 | 75S | E1FW | 1RA | PVC28 | 2.11 |
| 75 | M75 | 15.0 | 3＇ | 41.5 | 3 ½" | 59.1 | 67.9 | 66.7 | 78.4 | 2.5 | 3.0 | 100.0 | 110.0 | 117.0 | 75 | E1FW | 1RA | PVC30 | 2.42 |
| 90 | M90 | 24.0 | 3 ½＇ | 42.8 | 4" | 66.6 | 78.6 | 76.2 | 90.3 | 3.2 | 4.0 | 114.3 | 125.4 | 147.0 | 90 | E1FW | 1RA | PVC32 | 4.21 |
| 100 | M100 | 24.0 | 3 ½＇ | 42.8 | 4" | 76.0 | 90.9 | 86.1 | 101.4 | 3.2 | 4.0 | 123.0 | 135.3 | 140.0 | 100 | E1FW | 1RA | LSF33 | 4.45 |
| 115 | M115 | 24.0 | 4" | 44.0 | 5" | 86.0 | 97.9 | 101.5 | 110.2 | 3.2 | 4.0 | 133.4 | 146.7 | 162.0 | 115 | E1FW | 1RA | LSF34 | 6.19 |
| 130 | M130 | 24.0 | 5" | 46.8 | - | 97.0 | 114.9 | 110.2 | 123.2 | 3.2 | 4.0 | 152.4 | 167.6 | 174.0 | 130 | E1FW | 1RA | LSF35 | 8.34 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||||||||||
TECHNICAL ILLUSTRATION
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格蘭代理商：上海頤品自動化科技有限公司(ATEX，IECEX)
