產品詳情
點擊圖片查看原圖產品價格 面議
最小起訂量：20 只 可售數量：500 只
CMP接管式防爆格蘭系列（CMP A2FRC Cable glands）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥
CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司
A2FRC Cable Gland，explosive atmosphere globally approved, rigid flexible conduit gland
Globally Approved, Rigid Flexible Conduit Explosive Atmosphere Cable Gland
Designed for rigid flexible conduits；Easy install running coupler design
Displacement type flameproof seal；Globally marked, IECEx, ATEX CSA
-60°C to130°C； For all types of Unarmoured Braid Armour Cables housed in Conduit

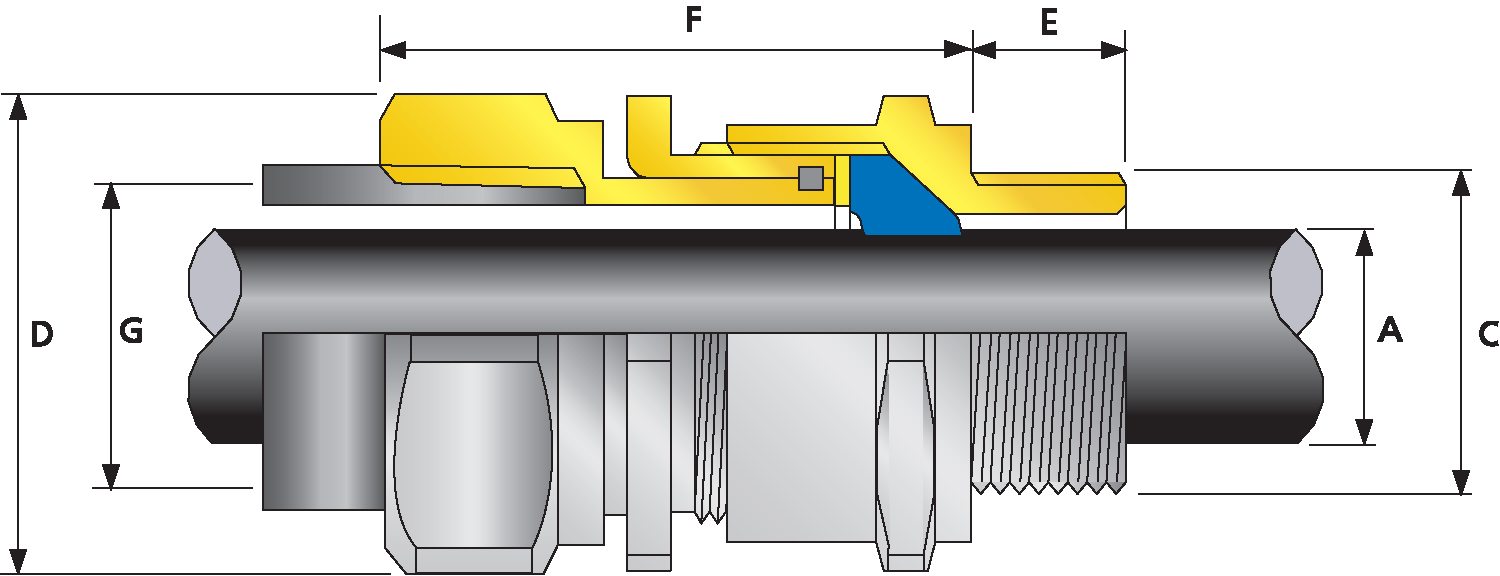

| Cable Gland Size |
Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) |
Female Connection Thread 'G' |
Female Connection Thread (NPT) 'G' |
Overall Cable Diameter 'A' |
Across Flats 'D' |
Across Corners 'D' |
Protrusion Length 'F' |
Combined Ordering Reference (*Brass Metric male and female) |
Shroud | Cable Gland Weight (Kgs) |
|||||||
| Standard | Option | ||||||||||||||||
| Metric | Thread Length (Metric) 'E' |
NPT | Thread Length (NPT) 'E' |
NPT | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||||
| 20S16 | M20 | 15.0 | ½' | 19.9 | ¾" | M20 | ½' | 3.2 | 8.7 | 24.0 | 26.4 | 46.9 | 20S16 | A2FRC | 1RA | PVC04 | 0.11 |
| 20S | M20 | 15.0 | ½' | 19.9 | ¾" | M20 | ½' | 6.1 | 11.7 | 24.0 | 26.4 | 46.1 | 20S | A2FRC | 1RA | PVC04 | 0.11 |
| 20 | M20 | 15.0 | ½' | 19.9 | ¾" | M20 | ½' | 6.5 | 14.0 | 27.0 | 29.7 | 47.9 | 20 | A2FRC | 1RA | PVC05 | 0.11 |
| 25 | M25 | 15.0 | ¾' | 20.2 | 1" | M25 | ¾' | 11.1 | 20.0 | 36.0 | 39.6 | 56.1 | 25 | A2FRC | 1RA | PVC09 | 0.20 |
| 32 | M32 | 15.0 | 1' | 25.0 | 1 ¼" | M32 | 1' | 17.0 | 26.3 | 41.0 | 45.1 | 55.5 | 32 | A2FRC | 1RA | PVC10 | 0.24 |
| 40 | M40 | 15.0 | 1 ¼' | 25.6 | 1 ½" | M40 | 1 ¼' | 23.5 | 32.2 | 50.0 | 55.0 | 57.7 | 40 | A2FRC | 1RA | PVC13 | 0.33 |
| 50S | M50 | 15.0 | 1 ½' | 26.1 | 2" | M50 | 1 ½' | 31.0 | 38.2 | 55.0 | 60.5 | 59.1 | 50S | A2FRC | 1RA | PVC15 | 0.43 |
| 50 | M50 | 15.0 | 2' | 26.9 | 2 ½" | M50 | 2' | 35.6 | 44.0 | 60.0 | 66.0 | 64.3 | 50 | A2FRC | 1RA | PVC18 | 0.44 |
| 63S | M63 | 15.0 | 2' | 26.9 | 2 ½" | M63 | 2' | 41.5 | 49.9 | 70.5 | 77.6 | 61.6 | 63S | A2FRC | 1RA | PVC21 | 0.72 |
| 63 | M63 | 15.0 | 2 ½' | 39.9 | 3" | M63 | 2 ½' | 47.2 | 55.9 | 75.0 | 82.5 | 71.0 | 63 | A2FRC | 1RA | PVC23 | 0.64 |
| 75S | M75 | 15.0 | 2 ½' | 39.9 | 3" | M75 | 2 ½' | 54.0 | 61.9 | 84.0 | 92.4 | 70.1 | 75S | A2FRC | 1RA | PVC26 | 0.96 |
| 75 | M75 | 15.0 | 3' | 41.5 | 3 ½" | M75 | 3' | 61.1 | 67.9 | 84.0 | 92.4 | 73.2 | 75 | A2FRC | 1RA | PVC26 | 0.86 |
| 90 | M90 | 24.0 | 3 ½' | 42.8 | 4" | M90 | 3 ½' | 66.6 | 79.9 | 108.0 | 118.8 | 106.3 | 90 | A2FRC | 1RA | PVC31 | 2.25 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||||||||
