產品詳情
點擊圖片查看原圖產品價格 面議
最小起訂量：20 只 可售數量：500 只

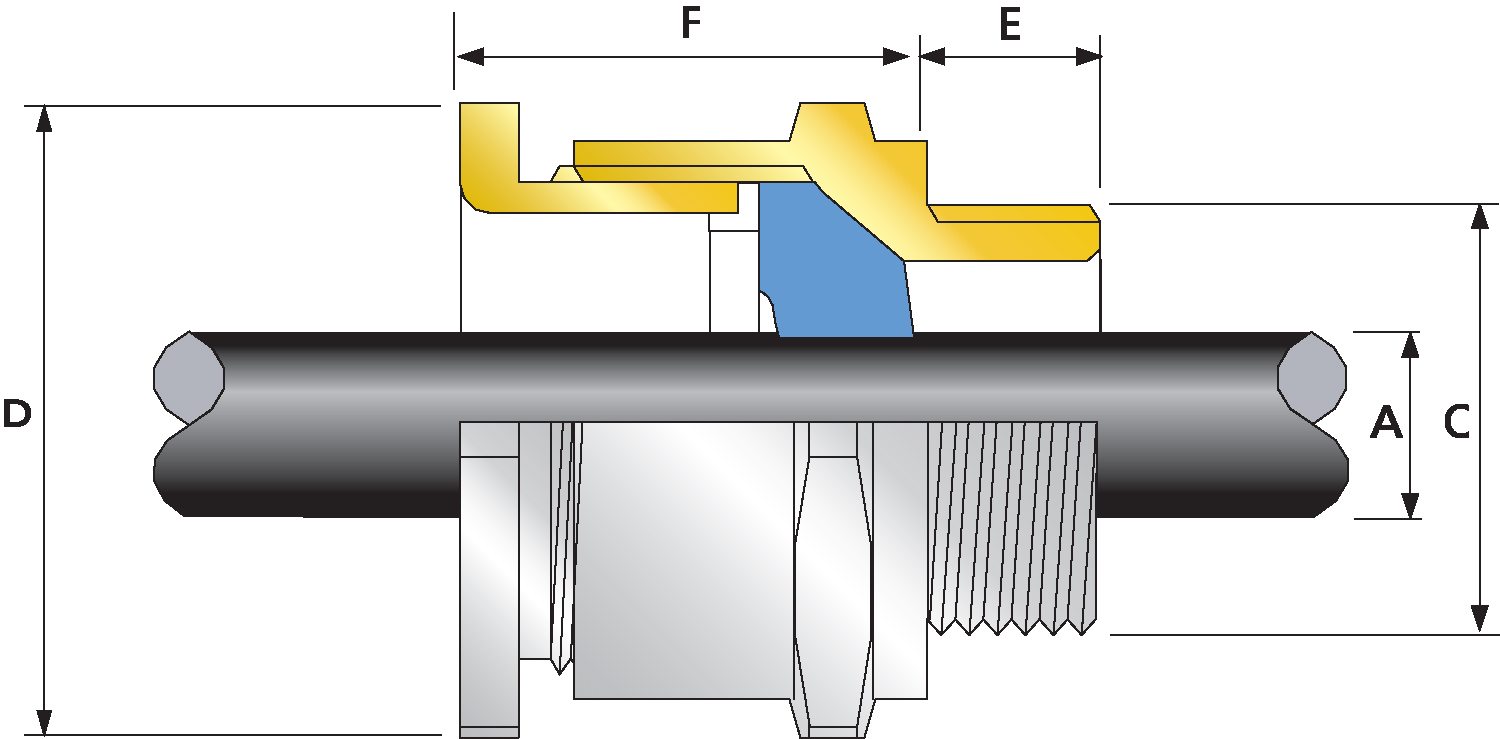

| Cable Gland Size | Available Entry Threads '"C'"(Alternate Metric Thread Lengths Available) | Overall Cable Diameter '"A'" (h x w) |
Across Flats '"D'" |
Across Corners '"D'" |
Protrusion Length '"F'" |
Combined Ordering Reference (Brass Metric) |
Cable Gland Weight (Kgs) |
|||||||
| Standard | Option | |||||||||||||
| Metric | Thread Length (Metric) '"E"' | NPT | Thread Length (NPT) '"E'" |
NPT | Min | Max | Max | Max | Size | Type | Ordering Suffix |
|||
| 20S | M20 | 15.0 | 1/2'" | 19.9 | 3/4'" | 4.0 x 6.2 | 6.8 x 11.7 | 24.0 | 26.4 | 25.1 | 20S | A2FFF | 1RA | 0.054 |
| 20 | M20 | 15.0 | 1/2'" | 19.9 | 3/4'" | 5.7 x 8.0 | 8.7 x 13.5 | 27.0 | 29.7 | 27.2 | 20 | A2FFF | 1RA | 0.059 |
| Dimensions are displayed in millimetres unless otherwise stated | ||||||||||||||
