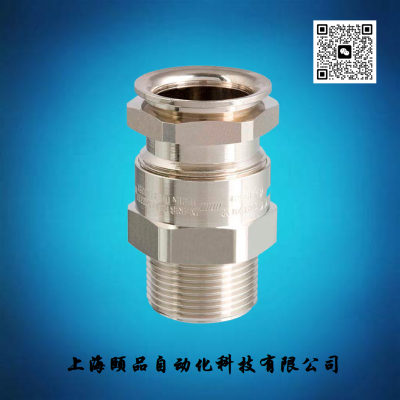

Eaton-庫柏Cooper-Capri非鎧防爆格蘭ADE-1F2系列
ADE-1F2 - for non-armoured cable
Eaton-庫柏Cooper代理商：上海頤品自動化科技有限公司
關鍵詞：Eaton防爆格蘭，庫柏Cooper防爆格蘭，Capri防爆格蘭，Raxton/Redapt防爆連接件
Suitable for the following cable types:
1、Non-armoured cable  2、Marine shipboard cable;  3、Type P cable Tray cable
Operating temperature: -60°C to +140°C
Material: Nickel-plated brass for superior corrosion resistance.
316L stainless steel, bronze and aluminum options available.
It is recommended that a suitable lubricant is used on all threads of stainless steel and aluminum versions.
Ingress protection (IP): IP66 / IP68 according to the bbbbbb of attachment and the condition of the equipment area
Certifications and compliances:
ATEX certificate no:
INERIS12ATEX0032X Zones 1 and 2, Groups IIA, IIB and IIC Zones 21 and 22
Groups IIIA, IIIB and IIIC II2GD / Ex db IIC / Ex eb IIC / Ex tb IIIC II3G Ex nRc IIC
IECEx certificate no:
IECEx INE 12.0025X Zones 1 and 2, Groups IIA, IIB and IIC Zones 21 and 22,
Groups IIIA, IIIB and IIC Ex db IIC / Ex eb IIC / Ex nRc IIC / Ex tb IIIC

Protection Type
Flameproof Ex db, Increased Safety Ex eb, Restricted Breathing Ex nR, Dust Ex tb

Area Classification
Zones 1 and 2, Groups IIA, IIB and IIC Zones 21 and 22, Groups IIIA, IIIB and IIIC Class I, Zone 1, AEx e II Class I, Zone 2, AEx e II, Ex e II



Ordering Codes

ntainer="0" data-container-width="400" data-container-height="400" data-show-header="1" data-sticky-header="0" data-header-font-size="11" data-header-font-family="'Open Sans', Helvetica, Arial, sans-serif" data-header-font-weight="400" data-header-font-style="normal" data-header-background-color="#C3512F" data-header-font-color="#FFFFFF" data-header-link-color="#FFFFFF" data-header-border-color="#B34A2A" data-header-position-alignment="center" data-body-font-size="11" data-body-font-family="'Open Sans', Helvetica, Arial, sans-serif" data-body-font-weight="400" data-body-font-style="normal" data-even-rows-background-color="#FFFFFF" data-odd-rows-background-color="#FCFCFC" data-even-rows-font-color="#666666" data-even-rows-link-color="#C3512F" data-odd-rows-font-color="#666666" data-odd-rows-link-color="#C3512F" data-rows-border-color="#E1E1E1" data-caption-show-caption="1" data-caption-caption-side="1" data-caption-text-align="1" data-caption-font-size="11" data-caption-font-family="'Open Sans', Helvetica, Arial, sans-serif" data-caption-font-weight="400" data-caption-font-style="normal" data-caption-font-color="#666666" data-autocolors-priority="rows" data-autocolors-affected-rows-1="" data-autocolors-rows-background-color-1="#FFFFFF" data-autocolors-rows-font-color-1="#666666" data-autocolors-affected-rows-2="" data-autocolors-rows-background-color-2="#FFFFFF" data-autocolors-rows-font-color-2="#666666" data-autocolors-affected-rows-3="" data-autocolors-rows-background-color-3="#FFFFFF" data-autocolors-rows-font-color-3="#666666" data-autocolors-affected-rows-4="" data-autocolors-rows-background-color-4="#FFFFFF" data-autocolors-rows-font-color-4="#666666" data-autocolors-affected-rows-5="" data-autocolors-rows-background-color-5="#FFFFFF" data-autocolors-rows-font-color-5="#666666" data-autocolors-affected-columns-1="" data-autocolors-columns-background-color-1="#FFFFFF" data-autocolors-columns-font-color-1="#666666" data-autocolors-affected-columns-2="" data-autocolors-columns-background-color-2="#FFFFFF" data-autocolors-columns-font-color-2="#666666" data-autocolors-affected-columns-3="" data-autocolors-columns-background-color-3="#FFFFFF" data-autocolors-columns-font-color-3="#666666" data-autocolors-affected-columns-4="" data-autocolors-columns-background-color-4="#FFFFFF" data-autocolors-columns-font-color-4="#666666" data-autocolors-affected-columns-5="" data-autocolors-columns-background-color-5="#FFFFFF" data-autocolors-columns-font-color-5="#666666" data-autoalignment-priority="rows" data-autoalignment-affected-rows-left="" data-autoalignment-affected-rows-center="" data-autoalignment-affected-rows-right="" data-autoalignment-affected-columns-left="" data-autoalignment-affected-columns-center="" data-autoalignment-affected-columns-right="" data-tablet-breakpoint="989" data-hide-tablet-list="" data-tablet-header-font-size="11" data-tablet-body-font-size="11" data-tablet-caption-font-size="11" data-tablet-hide-images="0" data-phone-breakpoint="479" data-hide-phone-list="" data-phone-header-font-size="11" data-phone-body-font-size="11" data-phone-caption-font-size="11" data-phone-hide-images="0" data-enable-cell-properties="1" style="width: 1170px; margin: 20px 0px; visibility: visible; color: rgb(138, 138, 138); font-family: Poppins, "Helvetica Neue", Arial, sans-serif; font-size: 14px; table-layout: auto; min-width: 0px; border-collapse: collapse !important; border-spacing: 0px !important; border-width: 0px !important; border-style: initial !important; border-color: initial !important; padding: 0px !important; vertical-align: middle !important;">

SERIES	THREAD SIZE (ISO)	THREAD SIZE CODE (ISO)	THREAD SIZE (NPT)	THREAD SIZE CODE (NPT)	CABLE SEALING RANGE	CABLE SEALING RANGE ISO (NPT OUTER SHEATH MIN - MAX	A	B	L	ADE GLAND SIZE	CATALOG NUMBER (ISO)	CATALOG NUMBER (NPT)
ADE1	12*	M12	1/4"*	N025	3	4.5 - 8.0	17	17	25.0	4	ADE1M123NPN	ADE1N0253NPN
ADE1	16*	M16	3/8"*	N038	2	4.5 - 8.5	17	19	25.0	4	ADE1M162NPN	ADE1N0382NPN
ADE1	16*	M16	3/8"*	N038	3	7.0 - 12.0	19	19	27.5	5	ADE1M163NPN	ADE1N0383NPN
ADE1	20	M20	1/2"	N050	0	2.8 - 5.5	15	24	24.0	3	ADE1M200NPN	ADE1N0500NPN
ADE1	20	M20	1/2"	N050	1	4.5 - 8.5	17	24	25.0	4	ADE1M201NPN	ADE1N0501NPN
ADE1	20	M20	1/2"	N050	2	7.0 - 12.0	19	24	27.5	5	ADE1M202NPN	ADE1N0502NPN
ADE1	20	M20	1/2"	N050	3	10.0 - 16.0 (15.5)	24	24	32.0	6	ADE1M203NPN	ADE1N0503NPN
ADE1	25	M25	3/4"	N075	1	7.0 - 12.0	19	30	27.5	5	ADE1M251NPN	ADE1N0751NPN
ADE1	25	M25	3/4"	N075	2	10.0 - 16.0	24	30	32.0	6	ADE1M252NPN	ADE1N0752NPN
ADE1	25	M25	3/4"	N075	3	13.5 - 20.5	30	30	36.5	7	ADE1M253NPN	ADE1N0753NPN
ADE1	32	M32	1"	N100	2	13.5 - 21.0	30	36	36.5	7	ADE1M322NPN	ADE1N1002NPN
ADE1	32	M32	1"	N100	3	18.0 - 27.5 (26.0)	41	41	46.0	8	ADE1M323NPN	ADE1N1003NPN
ADE1	40	M40	1 1/4"	N125	2	18.0 - 27.5 (26.0)	48	48	50.0	8	ADE1M402NPN	ADE1N1252NPN
ADE1	40	M40	1 1/4"	N125	3	23.0 - 34.0	48	48	50.0	9	ADE1M403NPN	ADE1N1253NPN
ADE1	50	M50	1 1/2"	N150	0	23.0 - 34.0	48	55	49.7	9	ADE1M500NPN	ADE1N1500NPN
ADE1	50	M50	1 1/2"	N150	1	29.0 - 41.0	55	55	52.0	10	ADE1M501NPN	ADE1N1501NPN
ADE1	50	M50	2"	N200	2	35.0 - 45.0 (48.0)	64	64	56.5	11	ADE1M502NPN	ADE1N2002NPN
ADE1	63	M63	-	-	2	35.0 - 48.0	64	67	56.5	11	ADE1M632NPN	-
ADE1	63	M63	2"	N200	3	42.0 - 56.0 (53.0)	72	72	60.0	12	ADE1M633NPN	ADE1N2003NPN
ADE1	75	M75	2 1/2"	N250	3	50.0 - 65.0 (62.5)	85	85	67.5	13	ADE1M753NPN	ADE1N2503NPN
ADE1	90	M90	3"	N300	2	58.0 - 74.0	95	95	69.0	14	ADE1M902NPN	ADE1N3002NPN
ADE1	90	M90	3"	N300	3	66.0 - 83.0 (78.0)	110	110	80.0	15	ADE1M903NPN	ADE1N3003NPN
ADE1	110	M110	3 1/2"	N350	2	75.0 - 93.0 (92.0)	120	120	80.0	16	ADE1M1102NPN	ADE1N3502NPN
ADE1	110	M110	4"	N400	3	85.0 - 104.0	135	135	90.0	17	ADE1M1103NPN	ADE1N4003NPN
